BASELIFT CORNER 6303 / 6313

BASELIFT CORNER 6313HA, 90- 90, floor-mounted

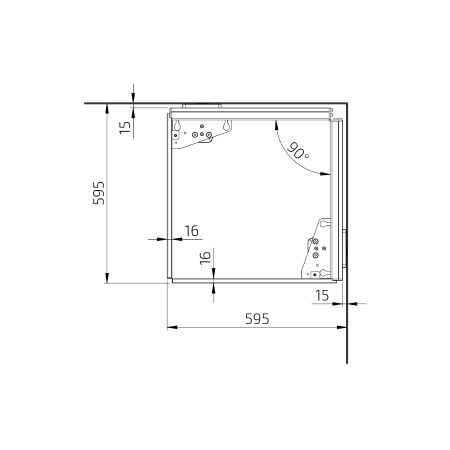

59.5 x 59.5 cm
90° front edge, 90° wall

Functions and Advantages

  • Can be equipped with drawers, hob and sink

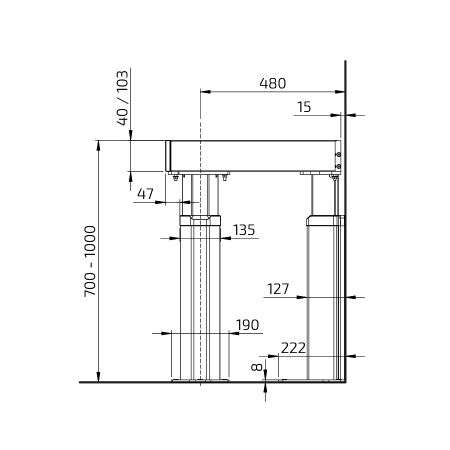

  • 30 cm height adjustment
  • Adjustable depth, 56 – 58 cm from wall
  • Frame in aluminium. Prepared from factory. Movable (sideward) and angle adjustable consoles.
  • Electronic and motor system "Plug and Play"
  • Safety strip covers the front edge under the worktop. (Installed from factory)

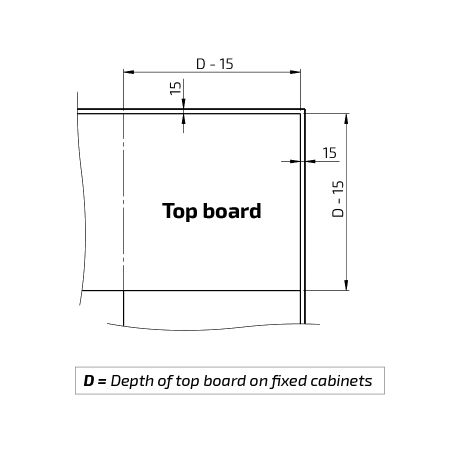

  • Brackets and screws for installation of fronts and top board are included in the delivery

Recommended Accessories
- Cover panels worktop lifts
- Drawers
- Front
- Hose Cover
- Multi-compartment frame
- Power socket / Power Switch
- Protective panel
- Rear edge proctection
- Safety lock
- Safety system

Delivery time: 5-15 working days

Control button

Corded for recess
Dimensions: 82x82x17 mm


BASELIFT CORNER 6313HA, 90- 90, Floor Mounted

Item.no Description Depth (cm) Quantity
6313HA-0595
61320
BASELIFT CORNER 6313HA - Floor Mounted
Control button for worktop lift - ALU-design
59.5

Plusmodule Left 6315HA - 40-100 cm

Item.no Description Depth (cm) Quantity
6315HA-040 Plusmodule Floor Mounted Left 6315HA - 40 cm 56.0-59.0
6315HA-050 Plusmodule Floor Mounted Left 6315HA - 50 cm 56.0-59.0
6315HA-060 Plusmodule Floor Mounted Left 6315HA - 60 cm 56.0-59.0
6315HA-070 Plusmodule Floor Mounted Left 6315HA - 70 cm 56.0-59.0
6315HA-080 Plusmodule Floor Mounted Left 6315HA - 80 cm 56.0-59.0
6315HA-090 Plusmodule Floor Mounted Left 6315HA - 90 cm 56.0-59.0
6315HA-100 Plusmodule Floor Mounted Left 6315HA - 100 cm 56.0-59.0

Plusmodule Left 6315HA - 110-180 cm

Item.no Description Depth (cm) Quantity
6315HA-110 Plusmodule Floor Mounted Left 6315HA - 110 cm 56.0-59.0
6315HA-120 Plusmodule Floor Mounted Left 6315HA - 120 cm 56.0-59.0
6315HA-130 Plusmodule Floor Mounted Left 6315HA - 130 cm 56.0-59.0
6315HA-140 Plusmodule Floor Mounted Left 6315HA - 140 cm 56.0-59.0
6315HA-150 Plusmodule Floor Mounted Left 6315HA - 150 cm 56.0-59.0
6315HA-160 Plusmodule Floor Mounted Left 6315HA - 160 cm 56.0-59.0
6315HA-170 Plusmodule Floor Mounted Left 6315HA - 170 cm 56.0-59.0
6315HA-180 Plusmodule Floor Mounted Left 6315HA - 180 cm 56.0-59.0

Plusmodule Left 6315HA - 190-240 cm

Item.no Description Depth (cm) Quantity
6315HA-190 Plusmodule Floor Mounted Left 6315HA - 190 cm 56.0-59.0
6315HA-200 Plusmodule Floor Mounted Left 6315HA - 200 cm 56.0-59.0
6315HA-210 Plusmodule Floor Mounted Left 6315HA - 210 cm 56.0-59.0
6315HA-220 Plusmodule Floor Mounted Left 6315HA - 220 cm 56.0-59.0
6315HA-230 Plusmodule Floor Mounted Left 6315HA - 230 cm 56.0-59.0
6315HA-240 Plusmodule Floor Mounted Left 6315HA - 240 cm 56.0-59.0

Plusmodule Right 6316HA - 40-100 cm

Item.no Description Depth (cm) Quantity
6316HA-040 Plusmodule Floor Mounted Right 6316HA - 40 cm 56.0-59.0
6316HA-050 Plusmodule Floor Mounted Right 6316HA - 50 cm 56.0-59.0
6316HA-060 Plusmodule Floor Mounted Right 6316HA - 60 cm 56.0-59.0
6316HA-070 Plusmodule Floor Mounted Right 6316HA - 70 cm 56.0-59.0
6316HA-080 Plusmodule Floor Mounted Right 6316HA - 80 cm 56.0-59.0
6316HA-090 Plusmodule Floor Mounted Right 6316HA - 90 cm 56.0-59.0
6316HA-100 Plusmodule Floor Mounted Right 6316HA - 100 cm 56.0-59.0

Plusmodule Right 6316HA - 110-180 cm

Item.no Description Depth (cm) Quantity
6316HA-110 Plusmodule Floor Mounted Right 6316HA - 110 cm 56.0-59.0
6316HA-120 Plusmodule Floor Mounted Right 6316HA - 120 cm 56.0-59.0
6316HA-130 Plusmodule Floor Mounted Right 6316HA - 130 cm 56.0-59.0
6316HA-140 Plusmodule Floor Mounted Right 6316HA - 140 cm 56.0-59.0
6316HA-150 Plusmodule Floor Mounted Right 6316HA - 150 cm 56.0-59.0
6316HA-160 Plusmodule Floor Mounted Right 6316HA - 160 cm 56.0-59.0
6316HA-170 Plusmodule Floor Mounted Right 6316HA - 170 cm 56.0-59.0
6316HA-180 Plusmodule Floor Mounted Right 6316HA - 180 cm 56.0-59.0

Plusmodule Right 6316HA - 190-240 cm

Item.no Description Depth (cm) Quantity
6316HA-190 Plusmodule Floor Mounted Right 6316HA - 190 cm 56.0-59.0
6316HA-200 Plusmodule Floor Mounted Right 6316HA - 200 cm 56.0-59.0
6316HA-210 Plusmodule Floor Mounted Right 6316HA - 210 cm 56.0-59.0
6316HA-220 Plusmodule Floor Mounted Right 6316HA - 220 cm 56.0-59.0
6316HA-230 Plusmodule Floor Mounted Right 6316HA - 230 cm 56.0-59.0
6316HA-240 Plusmodule Floor Mounted Right 6316HA - 240 cm 56.0-59.0
