DIAGO 504, 60-110 cm

  • Cabinet width: 60-110 cm

DIAGO 504, 120-180 cm

  • Cabinet width: 120-180 cm

DIAGO 504, 60-110 cm

DIAGO 504, 120-180 cm

Wall Cabinet Lift Granberg Diago 504, 60-110 cm width

Wall Cabinet Lift Granberg Diago 504, 60-110 cm width

Cabinet Width

  • 60.0 cm
  • 70.0 cm
  • 80.0 cm
  • 90.0 cm
  • 100.0 cm
  • 110.0 cm

Planning Width

  • 61.0 cm
  • 71.0 cm
  • 81.0 cm
  • 91.0 cm
  • 101.0 cm
  • 111.0 cm

Accessories

Control button, ALU-design - Wall cabinet lifts
Control button - ALU-design
- Verti & Diago
pcs
Radio control for 1 lifting system
Radio control for 1 lifting system
- Verti & Diago
pcs
Extension frame for ALU-Button
Extension frame for ALU-Button
pcs
Control button, Mini
Control button, Mini
- Verti & Diago
pcs
Radio Control Button, Mini
Radio Control Button, Mini for 1 lifting system
- Verti & Diago
pcs
Radio control - Hand control for 1 lifting system
Radio control - Hand control, 1 lifting system
- Baselift, Verti & Diago
pcs
LED Lighting rack
LED Lighting rack for Diago. 230 V EU Plug
pcs
LED Spotlights - 24 V 3,0 W
LED Spotlights to Diago. 230 V EU Plug
pcs
Connection pack Lighting
Connection pack Lighting
pcs
Screen for DIAGO 504
Screen for DIAGO 504 Width 56.0 cm
- For cabinet width 60 - 110 cm
pcs

Your configuration
Description
DIAGO 504 - Complete set, 60 cm
- Safety plate (60 cm)


DIAGO 504 is an electrical height-adjustable lifting system used for the mounting of new or existing wall cabinets. The lift is a diagonal lift that lowers the cabinet in a curved motion downwards and forwards to the front of the work surface. The movement can be stopped at any height. The lift is available in two widths that fit cabinets from 60.0 cm to 180 cm. The upper cabinet beam is adjustable to fit cabinet heights 70-110 cm. The cabinets can be fine-tuned in all planes (X, Y, Z) to fit the surrounding cabinets exactly. The lift protrudes 11 cm from the wall which must be taken into account when mounting the surrounding cabinets.
The lift is equipped with a reliable safety system that guarantees safe operation without any risk of pinching. Lighting and a light ramp can be mounted on the safety plates.

The lift can be integrated with kitchens from any kitchen manufacturer.

Functions and Advantages

  • Lowers one or more cabinets diagonally downwards and forwards to the front of the worktop
  • Takes up no space in the cabinet (mounted behind the cabinet)
  • Easy to reach the contents since the cabinet comes forward when lowered
  • Adjustable depth in all four corners provides the possibility to compensate for inclining wall
  • Safety plate stops the lowering if it comes in contact with any object on the underlying work surface. Mounted under the cabinets
  • Fits cabinets with height 70-110 cm
  • Maximum cabinet width 110 cm

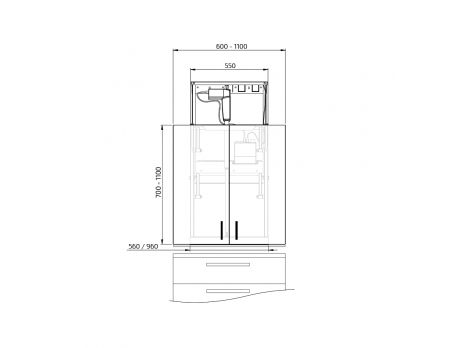

Useful information

  • Steplessly adjustable 435 mm downwards, 227 mm outwards
  • Fits cabinets with height 700-1100 mm
  • Fits cabinets with depth 260-400 mm
  • When the lift is in the raised position, the cabinet protrudes 110 mm further. To conceal that, adjoining cabinets must be positioned so they protrude the same distance.
  • There must be a gap for movement of 5-8 mm to the next cabinet/wall
More Inspiration
Microwave oven can be installed in the cabinets.
Diago 504 moves cabinets forward as they are lowered. This makes it simple to reach the cabinet even from a seated position.
Several cabinets can be mounted at one lifting system.
The lifting system builds out the wall cabinets 11 cm in the upper position.
Lights can be mounted under the cabinet. (Below the safety trip plate).
A safety plate is mounted under the cabinet. The plate stops the movement at the slightest resistance.

Download

This product is covered by a 2-year warranty against manufacturing defects.
According Machinery Directive 2006/42/EG, Annexe 2A
