Kitchen Worktop Lift Baselift 6310LA -Floor-mounted, 40 mm front

BASELIFT 6300HA - Wall-mounted

  • Wall-mounted
  • 103 mm front

BASELIFT 6300LA - Wall-mounted

  • Wall-mounted
  • 40 mm front

BASELIFT 6310HA - Floor-mounted

  • Floor-mounted
  • 103 mm front

BASELIFT 6310LA - Floor-mounted

  • Floor-mounted
  • 40 mm front

BASELIFT 6300HA - Wall-mounted

BASELIFT 6300LA - Wall-mounted

BASELIFT 6310HA - Floor-mounted

BASELIFT 6310LA - Floor-mounted

BASELIFT 6300HA - Wall-mounted

BASELIFT 6300LA - Wall-mounted

BASELIFT 6310HA - Floor-mounted

BASELIFT 6310LA - Floor-mounted

Kitchen Worktop Lift Baselift 6310LA -Floor-mounted, 40 mm front
  • 59.0 cm
  • 60.0 cm
  • 69.0 cm
  • 70.0 cm
  • 79.0 cm
  • 80.0 cm
  • 89.0 cm
  • 90.0 cm
  • 99.0 cm
  • 100.0 cm
  • 109.0 cm
  • 110.0 cm
  • 119.0 cm
  • 120.0 cm
  • 129.0 cm
  • 130.0 cm
  • 139.0 cm
  • 140.0 cm
  • 149.0 cm
  • 150.0 cm
  • 159.0 cm
  • 160.0 cm
  • 169.0 cm
  • 170.0 cm
  • 179.0 cm
  • 180.0 cm
  • 189.0 cm
  • 190.0 cm
  • 199.0 cm
  • 200.0 cm
  • 209.0 cm
  • 210.0 cm
  • 219.0 cm
  • 220.0 cm
  • 229.0 cm
  • 230.0 cm
  • 239.0 cm
  • 240.0 cm
  • 60.0 cm
  • 61.0 cm
  • 70.0 cm
  • 71.0 cm
  • 80.0 cm
  • 81.0 cm
  • 90.0 cm
  • 91.0 cm
  • 100.0 cm
  • 101.0 cm
  • 110.0 cm
  • 111.0 cm
  • 120.0 cm
  • 121.0 cm
  • 130.0 cm
  • 131.0 cm
  • 140.0 cm
  • 141.0 cm
  • 150.0 cm
  • 151.0 cm
  • 160.0 cm
  • 161.0 cm
  • 170.0 cm
  • 171.0 cm
  • 180.0 cm
  • 181.0 cm
  • 190.0 cm
  • 191.0 cm
  • 200.0 cm
  • 201.0 cm
  • 210.0 cm
  • 211.0 cm
  • 220.0 cm
  • 221.0 cm
  • 230.0 cm
  • 231.0 cm
  • 240.0 cm
  • 241.0 cm

Accessories

Control button, Mini
Control button, Mini
- Baselift & Centerlift		 pcs
Radio control - Hand control for 1 lifting system
Radio control - Hand control, 1 lifting system
- Baselift, Verti & Diago		 pcs
Radio control - Hand control for 2-5 lifting systems
Radio system for 2 lifting systems
- Baselift, Verti & Diago		 pcs
Radio system for 3 lifting systems
- Baselift, Verti & Diago		 pcs
Radio system for 4 lifting systems
- Baselift, Verti & Diago		 pcs
Radio system for 5 lifting systems
- Baselift, Verti & Diago		 pcs
Safety lock
Safety lock to Baselift pcs
Alu-Fronts 40 mm to Baselift 6300L
40 mm Alu-Front, 20 cm pcs
40 mm Alu-Front, 30 cm pcs
40 mm Alu-Front, 40 cm pcs
40 mm Alu-Front, 50 cm pcs
40 mm Alu-Front, 59 cm pcs
40 mm Alu-Front, 60 cm pcs
40 mm Alu-Front, 69 cm pcs
40 mm Alu-Front, 70 cm pcs
40 mm Alu-Front, 79 cm pcs
40 mm Alu-Front, 80 cm pcs
40 mm Alu-Front, 89 cm pcs
40 mm Alu-Front, 90 cm pcs
40 mm Alu-Front, 99 cm pcs
40 mm Alu-Front, 100 cm pcs
40 mm Alu-Front, 109 cm pcs
40 mm Alu-Front, 110 cm pcs
40 mm Alu-Front, 119 cm pcs
40 mm Alu-Front, 120 cm pcs
40 mm Alu-Front, 129 cm pcs
40 mm Alu-Front, 130 cm pcs
40 mm Alu-Front, 139 cm pcs
40 mm Alu-Front, 140 cm pcs
40 mm Alu-Front, 149 cm pcs
40 mm Alu-Front, 150 cm pcs
40 mm Alu-Front, 159 cm pcs
40 mm Alu-Front, 160 cm pcs
40 mm Alu-Front, 169 cm pcs
40 mm Alu-Front, 170 cm pcs
40 mm Alu-Front, 179 cm pcs
40 mm Alu-Front, 180 cm pcs
40 mm Alu-Front, 189 cm pcs
40 mm Alu-Front, 190 cm pcs
40 mm Alu-Front, 199 cm pcs
40 mm Alu-Front, 200 cm pcs
40 mm Alu-Front, 209 cm pcs
40 mm Alu-Front, 210 cm pcs
40 mm Alu-Front, 219 cm pcs
40 mm Alu-Front, 220 cm pcs
40 mm Alu-Front, 229 cm pcs
40 mm Alu-Front, 230 cm pcs
40 mm Alu-Front, 239 cm pcs
40 mm Alu-Front, 240 cm pcs
Fitting kit for cover panels (Baselift / Manulift)
Fitting kit for cover panels 6260-240
- Baselift & Manulift		 pcs
Cover panels for Worktop lift (Baselift / Manulift)
Cover panels, Worktop lifts (59.0-240.0 cm)
- Baselift & Manulift		 pcs
Countertop - Laminate / Compact-laminate, 450-610 mm depth
Top board - Laminate / Compact-laminate, 450-610 mm depth m
Rear edge trim ALU for worktop
Rear edge trim ALU for worktop, (per meter) m
Safety strip Baselift
Safety strip Baselift pcs
Stroke limiter
Height-adjustment kit pcs
Mini cabinet on wheels
Mini cabinet on wheels with drawer and inner drawer, fully extendable with soft-close pcs
Protective panel under worktop lift
Protective panel under worktop lift 60.0 cm pcs
Protective panel under worktop lift 70.0 cm pcs
Protective panel under worktop lift 80.0 cm pcs
Protective panel under worktop lift 100.0 cm pcs

Your configuration
Description

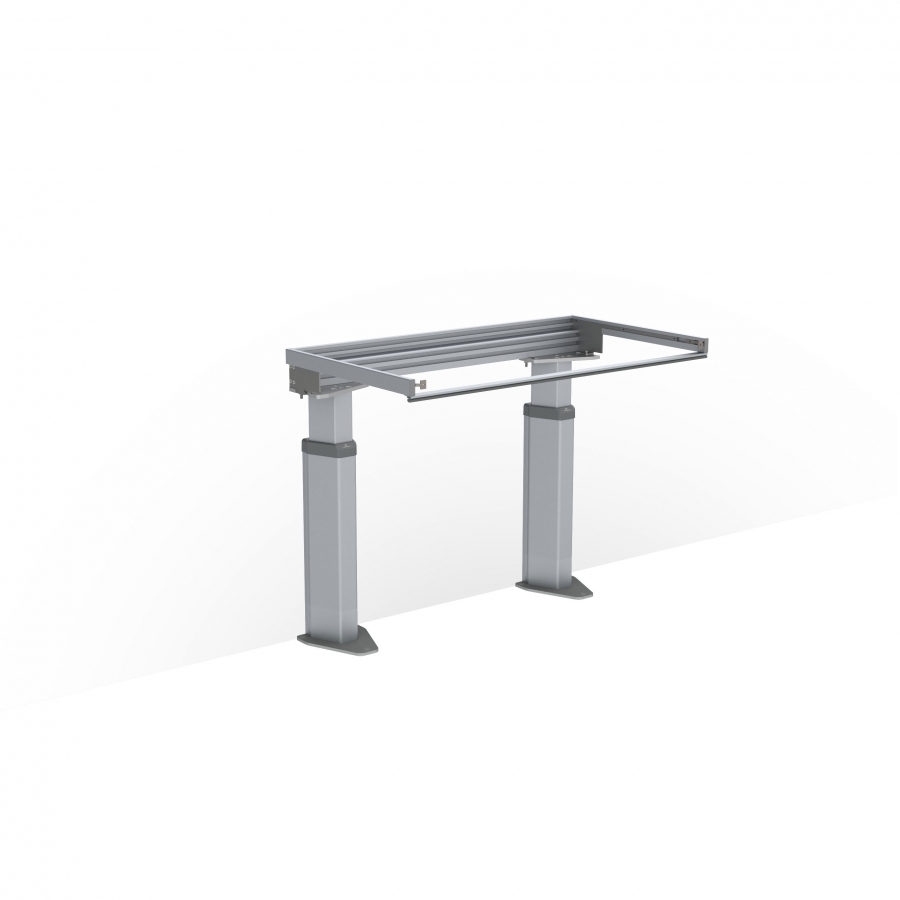

BASELIFT 6310LA - 59,0 cm


Functions and Advantages

  • Can be equipped with hob
  • 30 cm height adjustment
  • Adjustable depth, 56 – 59 cm from wall
  • Frame in aluminium. Prepared from factory. Movable (sideward) and angle adjustable consoles.
  • Electronic and motor system "Plug and Play"
  • Safety strip covers the front edge under the worktop. (Installed from factory)
  • Brackets and screws for installation of fronts and countertop are included in the delivery

Useful information

  • The countertops depth must be 15 mm shallower than adjoining countertops (to provide a gap for tiles and movement)
  • Width of the countertop = width of the lift
  • Electronics and motor system "Plug and Play"
  • Width of front = width of lift -4 mm
    Height of front: 40 mm, fittings enclosed

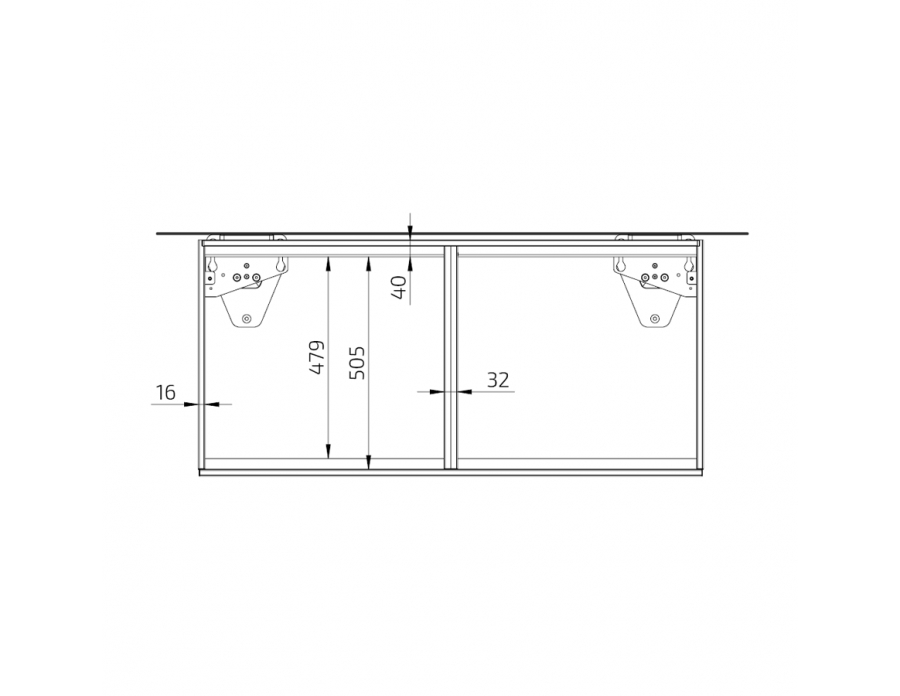

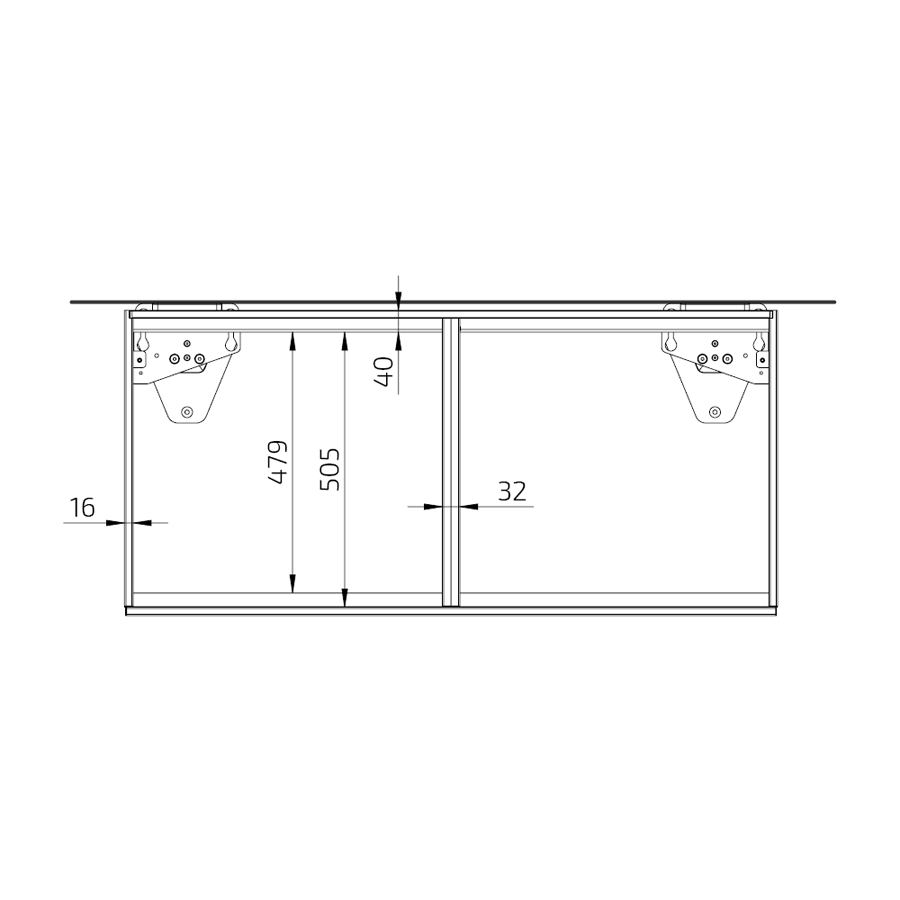

  • Cover panels can hide installations under the worktop 2 pcs width = width of lift -10 mm, height 438 mm, thickness 12-20 mm

Standard equipment

  • Factory-mounted aluminium system with movable and tiltable brackets
  • Floor-mounted motors
  • Safety switch
